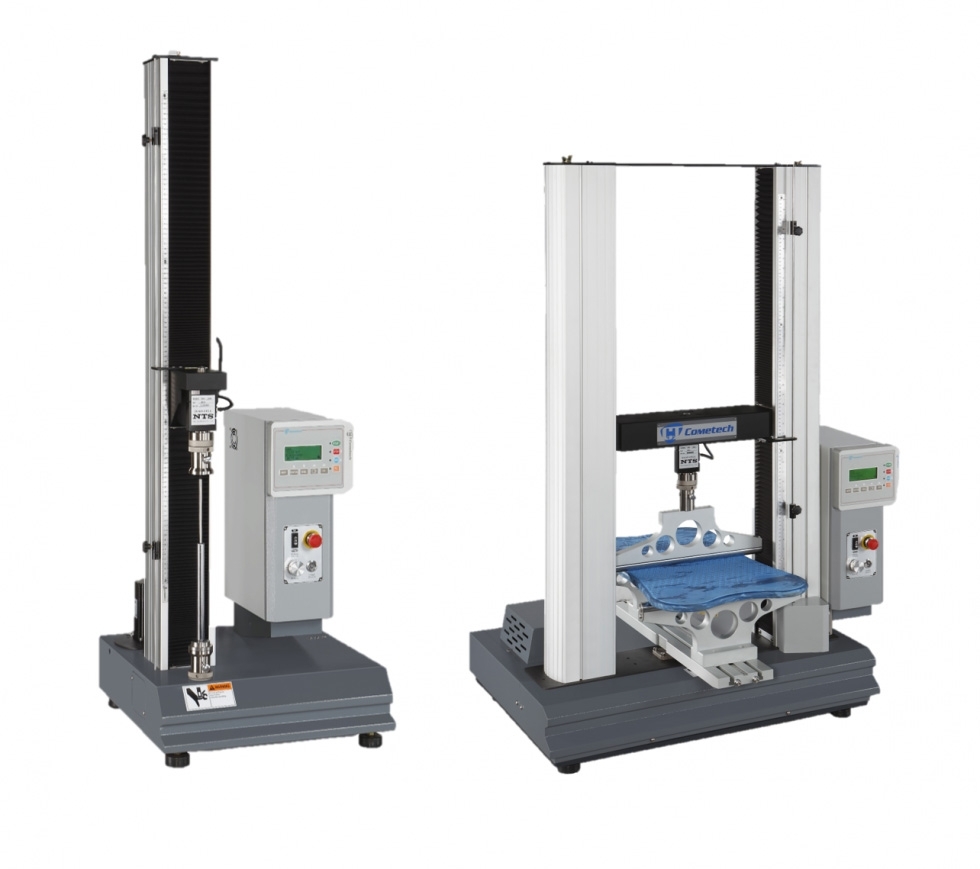

Universal Testing Machine
― PRODUCT ―

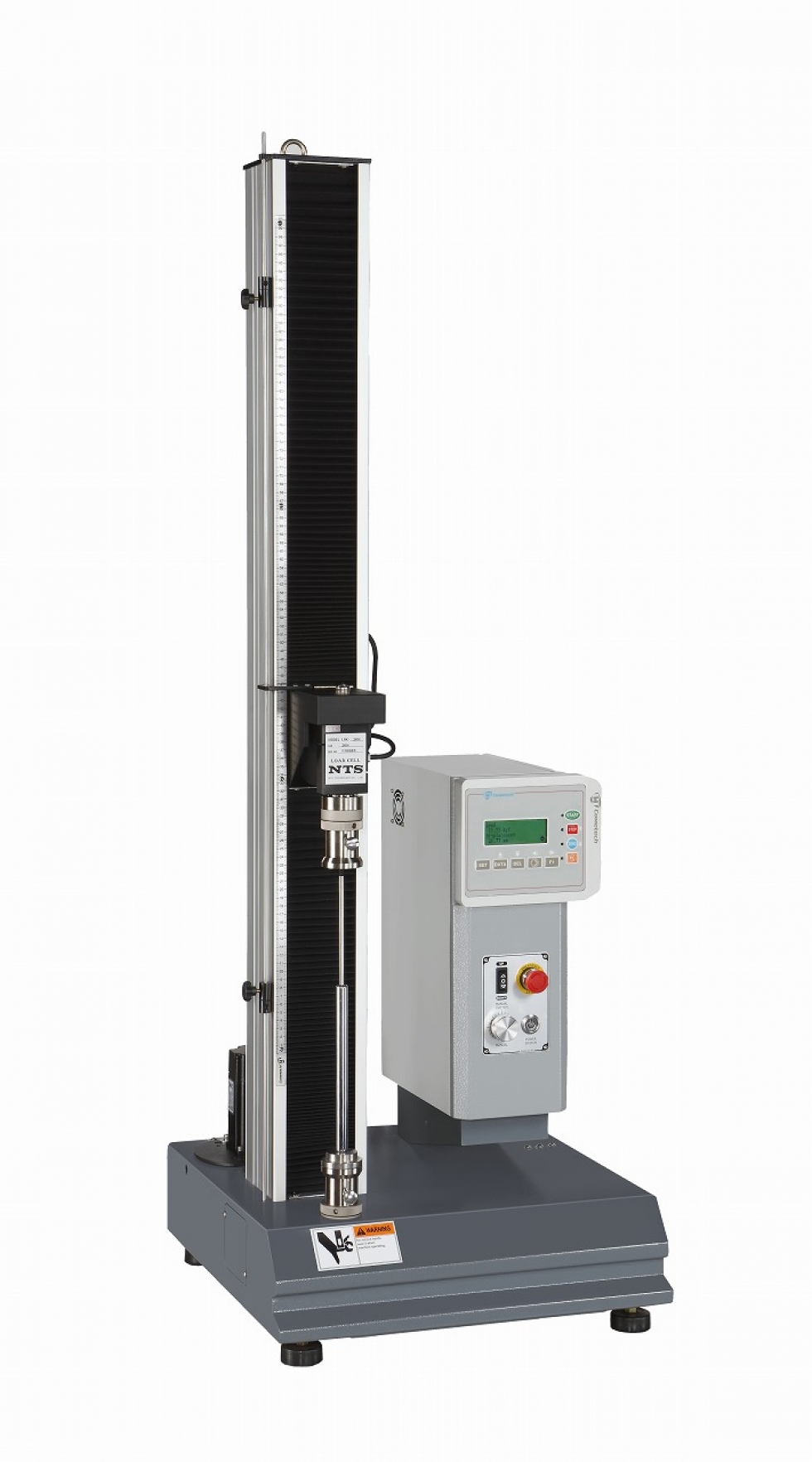

Single Column

The single column type has good configuration with multiple function with small space requirement. The Max. test capacity can reach to 5 kN. It also provide a quite test environment and high precision test result. Multiple control systems can choose special displayer without connect computer (stand-alone) that can do simple test. It also can connect with computer which can do more functions. Standard equipped with sophisticated hand wheel which can be in precision position.
The load cell and extensometer of accessories have memory function. When change other type which does not need to do troublesome setting.

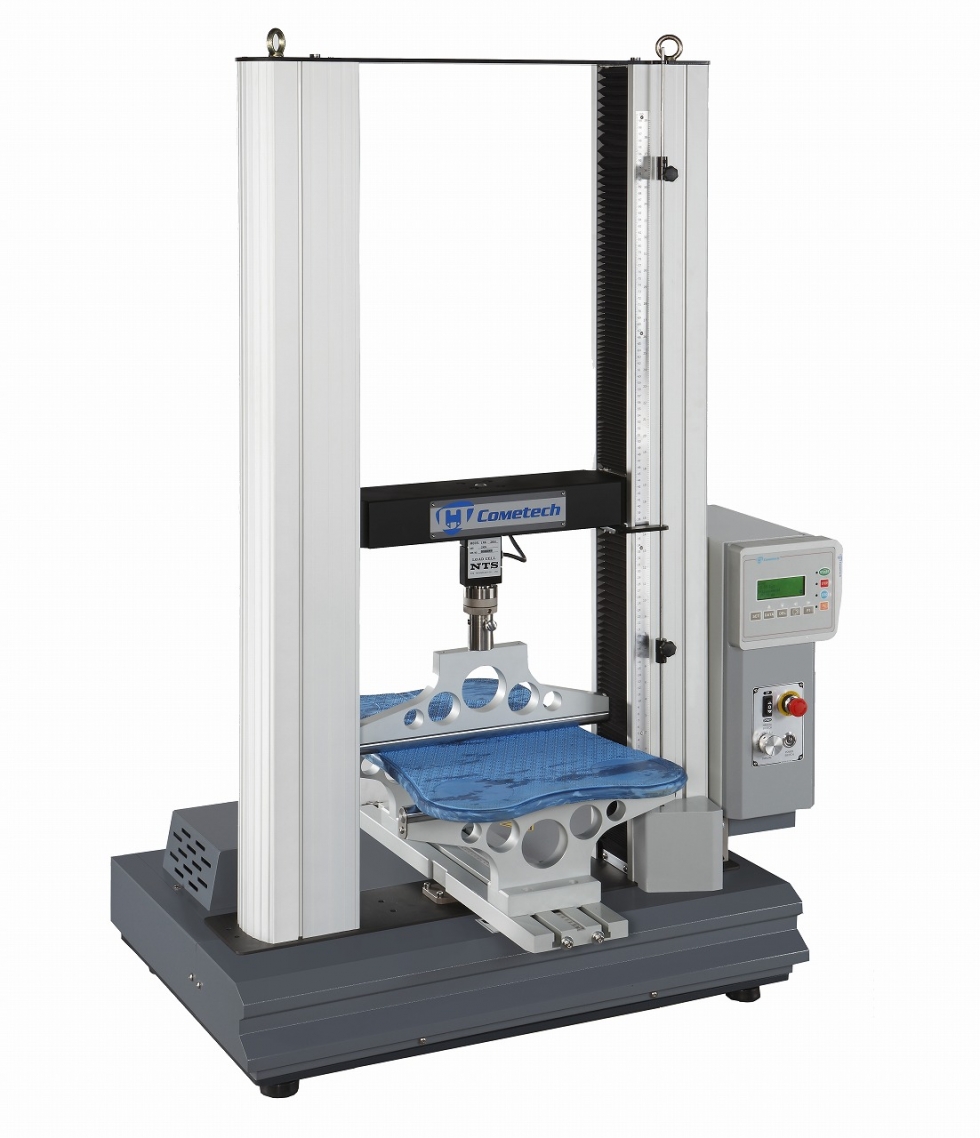

Twin Column

The table type has large test space with long stroke. Multiple model of width plan large objects test and expand test space. The max. test capacity is 20 kN with high precision, low noise and maintenance-free of servo drive system. Standard equipped with sophisticated hand wheel which can be in precision position.
